Organum vestibulocochleare - HE

From WikiLectures

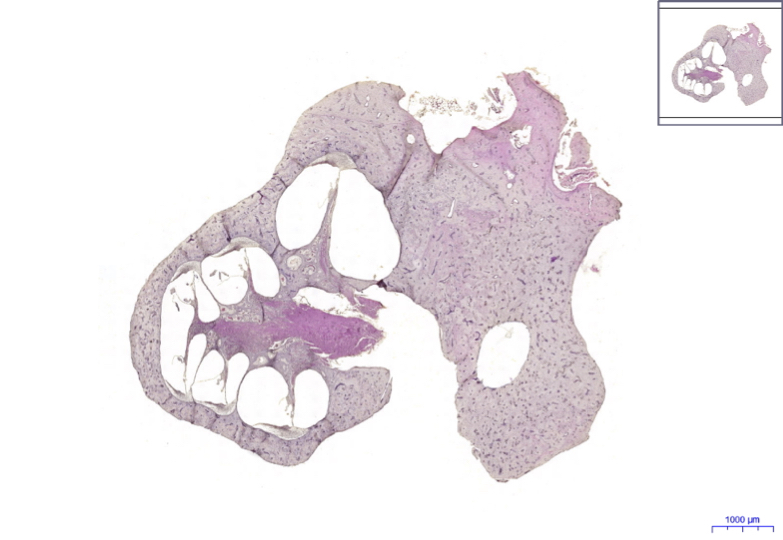

Organum vestibulocochleare – HE, 0.8x

Organum vestibulocochleare:

Organum vestibulocochleare HE 0,8x.jpg


Organum vestibulocochleare – HE, 5.6x

Organum vestibulocochleare:

Organum vestibulocochleare HE 5,6x.jpg
  • 1) K – bone
  • 2) NE – scala vestibuli
  • 3) SM – scala media
  • 4) ST – scala tympani
  • 5) MV – membrane vestibularis / vestibular membrane (Reissner's/Reissner's)
  • 6) MT – tectorial membrane
  • 7) L – limbus
  • 8) LS – spiral ligament
  • 9) BM – basilar membrane
  • 10) P – periosteum


Organum vestibulocochleare – HE, 16x

Organum vestibulocochleare:

Organum vestibulocochleare HE 16x.jpg
  • 1) K – bone
  • 2) NE – scala vestibuli
  • 3) ST – scala tympani
  • 4) GS – spiral ganglion
  • 5) MSV – mesothelium of scala vestibuli
  • 6) LO – lamina ossea
  • 7) AGS – ganglion spirale axons (efferent) / ganglion spirale axons (efferent)
  • 8) AVGS – afferent fibers of ganglion spirale


Organum vestibulocochleare – HE, 20x

Organum vestibulocochleare:

Organum vestibulocochleare HE 20x.jpg
  • 2) NE – scala vestibuli
  • 3) SM – scala media
  • 4) ST – scala tympani
  • 6) MT – tectorial membrane
  • 9) BM – basilar membrane
  • a) ZVB – outer hair cells / outer hair cells
  • b) PB – pillar cells
  • c) CVT – Corti's inner tunnel / Corti's inner tunnel
